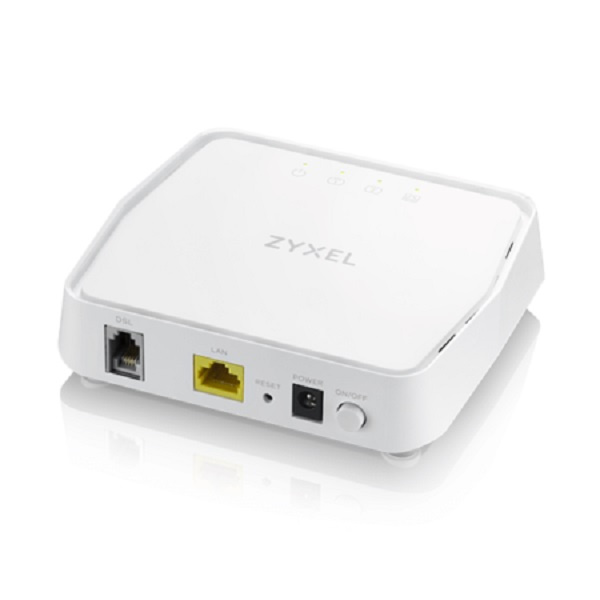

Zyxel VMG4005-B50A VDSL2 17a Bonding and 35b Single Line Bridge
Výrobce:ZyXEL
Kód produktu:i26_447318
Part number:VMG4005-B50A-EU01V1F
EAN:4718937609208
Záruka:23 měsíců
Dostupnost:
skladem k odeslání Zboží je na centrálním skladu dodavatele, připraveno ihned k expedici v případě objednávky do 16:30
Ihned
k odeslání: 20 ks
Popis
Parametry produktu
VDSL2 profiles: 8a/b/c/d, 12a/b, 17a bonding, and 35b over POTS Gateway, 1GbE LAN, EU+UK STD version
The Zyxel VMG4005-B Series is a VDSL2 17a Bonding and 35b Single Line Bridge is a VDSL bonding bridge which provides excellent premium-class line speeds of up to 200Mbps with 17a bonding or 300Mbps with 35b single line for broadband services to extend the coverage and performance for enhanced user experience.
For ISP/Telco needs, the VMG4005-B Series supports rate and line status monitoring and management while users can enjoy not only high-speed VDSL services, but also broadband multimedia applications such as interactive gaming, video streaming and real-time audio much easier than ever.
VDSL2 17a Bonding technology allows ISPs to double the speed of their existing connection for customers
VDSL2 supports super vectoring of up to profile 35b
Metallic Line Testing (MELT) functionality, TR-286 standard compliant
Auto provisioning and remote management through TR-069
Zyxel OPAL firmware offers better flexibility and faster time-to-market
Responsive Web design and intuitive user interface
Bonded VDSL2 with Vector
The Zyxel VMG4005-B Series VDSL2 17a Bonding and 35b Single Line Bridge supports VDSL2 bonding with vectoring of up to profile 17a and 35b. Vectoring supports reduce cross-talk for up to 150% for improved performance and range for operators.
Comprehensive Routing with IPv6, QoS and Firewall
Zyxel offers excellent routing capabilities designed to meet service provider needs. The Zyxel VMG4005-B Series VDSL2 17a Bonding and 35b Single Line Bridge continues this legacy with full IPv4 support, IPv6/IPv4 Dual Stack and IPv6 Rapid Deployment (RD) for a strong foundation to implement advanced features including quality of service (QoS) functionality to categorize incoming and outgoing traffics in addition to a stateful packet inspection (SPI) firewall for end-user security.
TR-069 remote management
With TR-069 standard management specifications, the service providers are able to manage, configure and diagnose the client devices remotely without manual intervention of end-users. This unique feature not only offers a true “plug-and-play” experience, but also reduces the complexity of deployment and therefore saves operation and maintenance costs for service providers.
System Specifications
Bridge Features
IEEE 802.1D transparent bridge & basic spanning tree
PPPoE (RFC 2516)
PPPoA (RFC 2364)
MAC Encapsulation Routing / IPoE
DHCP client/server/relay with DHCP option 43/60/61
IPv6: Dual Stack, 6RD
QoS
802.1Q VLAN tagging/un-tagging
Support flexible traffic classification
Support VLAN staking (QinQ)
Networking
LAN Setup
VLAN Group
Interface group
Management
Web/HTTP: 3 level log-in
CLI (Command Line Interpreter) via SSH or Telnet
Firmware upgrade via Web/TFTP/FTP/TR069 RPC method
Text based configuration (XML based)
Configuration backup/update/restore default via Web
Configurable access control for remote management (Interface and / port number)
Trust Domain (support trust domain list)
NTP (Internet Time automatically synchronize)
DSL Forum TR-069, TR-098,TR111, TR181
Rom-D support
Session login. (for multiple user configuration with login privilege.)
Configuration filter by login privileges
Firewall & Security
Generic packet filter
DoS attack prevention
Certificates
System Monitor
xDSL Statistics
Traffic Status
MAC Address Table
ARP table
System Log
Hardware Specifications
VDSL
G.993.1 VDSL
G.993.2 VDSL2, Band 997, 998, over POTS
Support VDSL profiles: 8a/b/c/d, 12a/b, 17a, and 35b
G.vector
ADSL
G.992.1 (G.dmt)
G.992.2 (G.lite)
ANSI T1.413 compliant
G.992.3 (ADSL2)
G.992.5 (ADSL2+)
G.INP support
LAN
One 10/100/1000 Mbps Ethernet RJ-45 ports
LED indicators
Power
VDSL#1
VDSL#2
LAN
Button
Power On/Off
Reset
Power Consumption
12 V DC/1 A
Physical Specifications
Item dimensions (WxDxH): 130 x 120 x 32 mm (5.11” x 4.72” x 1.25”)
Item weight: 173 g (0.38 lb.)
Packing dimensions (WxDxH): 245 x 142 x 42mm (9.64” x 5.59” x 1.65”)
Packing weight: 380 g (0.84 lb.)
Environmental Specifications
Operating Environment
Temperature: 0oC to 40oC (32oF to 104oF)
Humidity: 10% to 90% (Non-Condensing)
Storage Environment
Temperature: -30oC to 70oC (-22oF to 158oF)
Humidity: 10% to 95% (Non-Condensing)
Certification
CE
Package Contents
VDSL2 Bridge Modem
Power adapter
Quick start guide
DoC & Safety warning
The Zyxel VMG4005-B Series is a VDSL2 17a Bonding and 35b Single Line Bridge is a VDSL bonding bridge which provides excellent premium-class line speeds of up to 200Mbps with 17a bonding or 300Mbps with 35b single line for broadband services to extend the coverage and performance for enhanced user experience.
For ISP/Telco needs, the VMG4005-B Series supports rate and line status monitoring and management while users can enjoy not only high-speed VDSL services, but also broadband multimedia applications such as interactive gaming, video streaming and real-time audio much easier than ever.
VDSL2 17a Bonding technology allows ISPs to double the speed of their existing connection for customers
VDSL2 supports super vectoring of up to profile 35b
Metallic Line Testing (MELT) functionality, TR-286 standard compliant
Auto provisioning and remote management through TR-069
Zyxel OPAL firmware offers better flexibility and faster time-to-market
Responsive Web design and intuitive user interface
Bonded VDSL2 with Vector
The Zyxel VMG4005-B Series VDSL2 17a Bonding and 35b Single Line Bridge supports VDSL2 bonding with vectoring of up to profile 17a and 35b. Vectoring supports reduce cross-talk for up to 150% for improved performance and range for operators.
Comprehensive Routing with IPv6, QoS and Firewall
Zyxel offers excellent routing capabilities designed to meet service provider needs. The Zyxel VMG4005-B Series VDSL2 17a Bonding and 35b Single Line Bridge continues this legacy with full IPv4 support, IPv6/IPv4 Dual Stack and IPv6 Rapid Deployment (RD) for a strong foundation to implement advanced features including quality of service (QoS) functionality to categorize incoming and outgoing traffics in addition to a stateful packet inspection (SPI) firewall for end-user security.
TR-069 remote management
With TR-069 standard management specifications, the service providers are able to manage, configure and diagnose the client devices remotely without manual intervention of end-users. This unique feature not only offers a true “plug-and-play” experience, but also reduces the complexity of deployment and therefore saves operation and maintenance costs for service providers.
System Specifications
Bridge Features
IEEE 802.1D transparent bridge & basic spanning tree
PPPoE (RFC 2516)
PPPoA (RFC 2364)
MAC Encapsulation Routing / IPoE
DHCP client/server/relay with DHCP option 43/60/61
IPv6: Dual Stack, 6RD
QoS
802.1Q VLAN tagging/un-tagging
Support flexible traffic classification
Support VLAN staking (QinQ)
Networking
LAN Setup
VLAN Group
Interface group
Management
Web/HTTP: 3 level log-in
CLI (Command Line Interpreter) via SSH or Telnet
Firmware upgrade via Web/TFTP/FTP/TR069 RPC method
Text based configuration (XML based)
Configuration backup/update/restore default via Web
Configurable access control for remote management (Interface and / port number)
Trust Domain (support trust domain list)
NTP (Internet Time automatically synchronize)
DSL Forum TR-069, TR-098,TR111, TR181
Rom-D support
Session login. (for multiple user configuration with login privilege.)
Configuration filter by login privileges
Firewall & Security
Generic packet filter
DoS attack prevention
Certificates
System Monitor
xDSL Statistics
Traffic Status
MAC Address Table
ARP table
System Log
Hardware Specifications
VDSL
G.993.1 VDSL
G.993.2 VDSL2, Band 997, 998, over POTS
Support VDSL profiles: 8a/b/c/d, 12a/b, 17a, and 35b
G.vector
ADSL
G.992.1 (G.dmt)
G.992.2 (G.lite)
ANSI T1.413 compliant
G.992.3 (ADSL2)
G.992.5 (ADSL2+)
G.INP support
LAN
One 10/100/1000 Mbps Ethernet RJ-45 ports
LED indicators
Power
VDSL#1
VDSL#2
LAN
Button
Power On/Off
Reset
Power Consumption
12 V DC/1 A
Physical Specifications
Item dimensions (WxDxH): 130 x 120 x 32 mm (5.11” x 4.72” x 1.25”)
Item weight: 173 g (0.38 lb.)
Packing dimensions (WxDxH): 245 x 142 x 42mm (9.64” x 5.59” x 1.65”)
Packing weight: 380 g (0.84 lb.)
Environmental Specifications
Operating Environment
Temperature: 0oC to 40oC (32oF to 104oF)
Humidity: 10% to 90% (Non-Condensing)
Storage Environment
Temperature: -30oC to 70oC (-22oF to 158oF)
Humidity: 10% to 95% (Non-Condensing)
Certification
CE
Package Contents
VDSL2 Bridge Modem
Power adapter
Quick start guide
DoC & Safety warning
Výrobce (wireless):ZyXEL
Rychlost přenosu Wi-Fi (wireless):Není
Pásmo (wireless):Není
Podpora PoE (wireless):Ne
Výrobce (modemy):ZyXEL
Typ (modemy):VDSL
Wi-Fi (modemy):Ne
Rychlost ethernetu (routery):1 Gbit
VPN (routery):Ano
Wi-Fi (routery):Ano
