System Specifications
Wireless Standard

IEEE 802.11 b/g/n 2.4 GHz
IEEE 802.11 a/n/ac 5 GHz
Wireless Speed

Transmit:
300 Mbps* for 2.4 GHz
867 Mbps* for 5 GHz
Receive:
300 Mbps* for 2.4 GHz
867 Mbps* for 5 GHz
Wireless Security

WPA-PSK/WPA2-PSK, WPS
Wireless Features

Guest WiFi
WiFi Protected Setup (WPS)
WiFi Multimedia (WMM)
Auto channel selection
Wireless output power management
Wireless scheduling
MAC address filtering
Routing

Network Address Translation (NAT)
WAN type: Static IP, DHCP, PPPoE
DHCP server/client
IGMP v1/v2
Auto-IP change
Dynamic DNS
Firewall

Stateful Packet Inspection (SPI)
Deny of Service (DoS) Prevention
Application Control

ONE Connect
System Management

Online firmware upgrade
Remote management
UPnP
Operation Mode

Router mode
AP mode

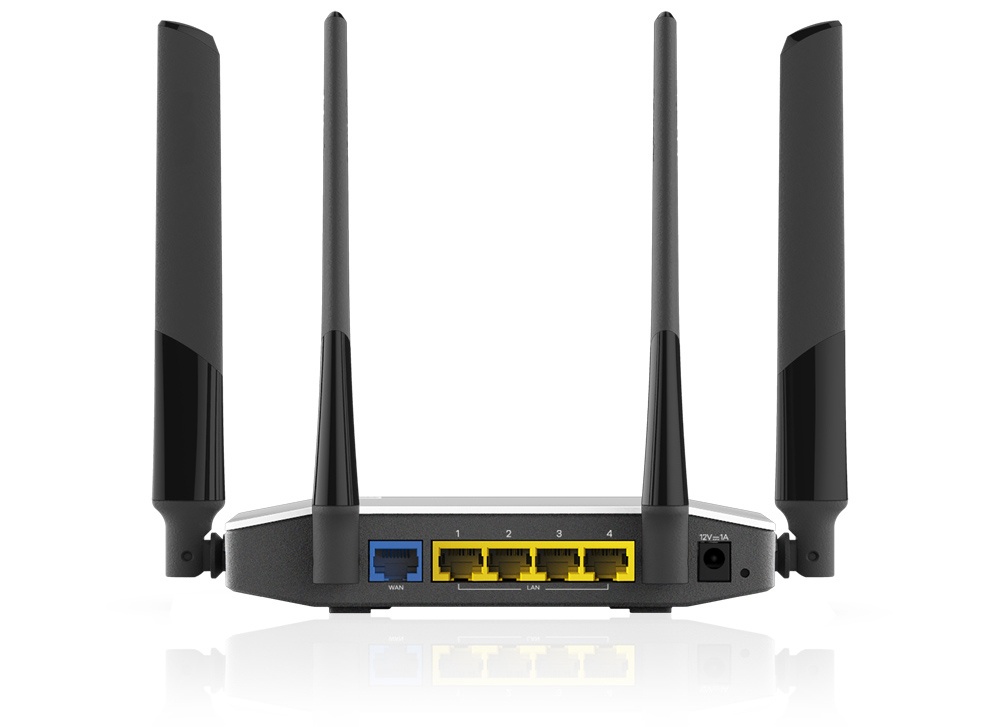

WAN: One 10/100 Mbps Ethernet RJ-45 port with auto MDI/MDIX support
LAN: Four 10/100 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support
Antenna: 4 External Antennas
LED indicators:
Power/SYS
WAN
WLAN_2.4G
WLAN_5G
Buttons:
Reset
WPS
Power: 12V DC, 1A
Power consumption: 5W

Item dimensions (WxDxH): 260.4 x 182 x 81.2 mm
Item weight: 578 g
Packing dimensions (WxDxH): 321 x 202 x 106 mm
Packing weight: 1388 g

Operating Environment

Temperature: 0°C to 40°C
Humidity: 10% to 90% (Non-condensing)
Storage Environment

Temperature: -30°C to 70°C
Humidity: 10% to 95% (Non-condensing)

Safety: CE-LVD
EMC: CE, FCC

Package Contents:
Wireless router
Power adapter
Ethernet cable
Quick start guide (combined with warranty form)
