Built with top-quality MLC NAND flash chips, Transcend's microSD/SDHC 410M memory cards can endure operating temperatures from -25°C to 85°C; and set a new standard for consistent, long-term performance even in the harshest conditions. Moreover, these cards offer high-speed data transfer rates to satisfy the demanding performance and reliability requirements of embedded systems, such as transportation, telecommunication, and IoT applications.

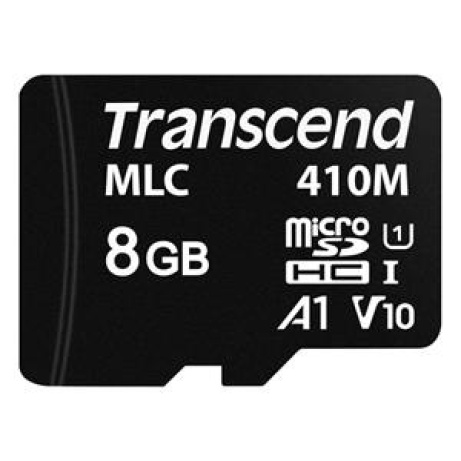

Appearance
Dimensions 11 mm x 15 mm x 1 mm (0.43" x 0.59" x 0.04")
Form Factor
microSD flash card
Storage
Flash Type
MLC NAND flash
Capacity
8 GB
Operating Environment
Operating Voltage
2.7V ~ 3.6V
Drop Test
1.5m free fall
Operating Temperature
Standard Temp.-25°C (-13°F) ~ 85°C (185°F)
Storage Temperature -40°C (-40°F) ~ 85°C (185°F)
Humidity 0% ~ 95%
Shock
Acceleration: 490 m/s2 (standard holding time: 11 ms, semi-sine wave, velocity change: 3.44 m/s)
Vibration (Operating) 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)
Power
Power Consumption (Max.) 0.72 watt(s)
Performance
Read Speed (Max.) Up to 95 MB/s
Write Speed (Max.) Up to 50 MB/s
Terabytes Written (TBW) Up to 86 TBW
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
