Chipset: Intel® B460

Rozměrový formát: Mini-ITX Form Factor (170 mm x 170 mm)
Podpora pro procesory: Intel® 10th Gen processors
Patice procesoru: LGA 1200

Pozice na paměti: 2x DDR4
Podpora pro paměti:
*Intel® Core™ i7/i9: 2933 MHz
*Intel® Core™ i5 (a nižší): 2666 MHz
Max.velikost operační paměti: 64 GB
Podpora pro paměti typu: DDR4
*Dual-Channel mode
*non-ECC, un-buffered memory
*Intel® Extreme Memory Profile (XMP)

Grafická karta:
*Integrovaná na základě CPU

Zvuková karta:
*Realtek® ALC1200 Codec

Síťová karta:
*Realtek® RTL8125B 2.5Gbps LAN controller
*Wi-Fi Intel® AX200
*Bluetooth® 5.1

Rozšiřující sloty:
*1x PCIe 3.0 x16 slot

RAID řadič: 0, 1, 5, 10

SATA:
*4x SATA 6Gb/s ports

M.2:
*1x M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices
*1x M2_2 supports up to PCIe 3.0 x4, 2280 storage devices

USB:
*zadní USB porty ( celkem 6 )
*1x USB 3.2 Gen 1 5Gbps Type-C port
*3x USB 3.2 Gen 1 5Gbps ports
*2x USB 2.0 ports
*přední USB porty ( celkem 5 )
*1x USB 3.2 Gen 1 5Gbps Type-C port
*2x USB 3.2 Gen 1 5Gbps ports
*2x USB 2.0 ports

Interní porty:
*1x 24-pin ATX main power connector
*1x 8-pin ATX 12V power connector
*4x SATA 6Gb/s connectors
*2x M.2 slots (M-Key)
*1x USB 3.2 Gen 1 5Gbps Type-C port
*1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
*1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
*1x 4-pin CPU fan connector
*1x 4-pin water-pump fan connector
*1x 4-pin system fan connector
*1x Front panel audio connector
*1x System panel connector
*1x 4-pin RGB LED connector
*1x 3-pin RAINB0W LED connector
*1x Chassis Intrusion connector
*1x TPM module connector
*1x Clear CM0S jumper
*4x EZ Debug LED

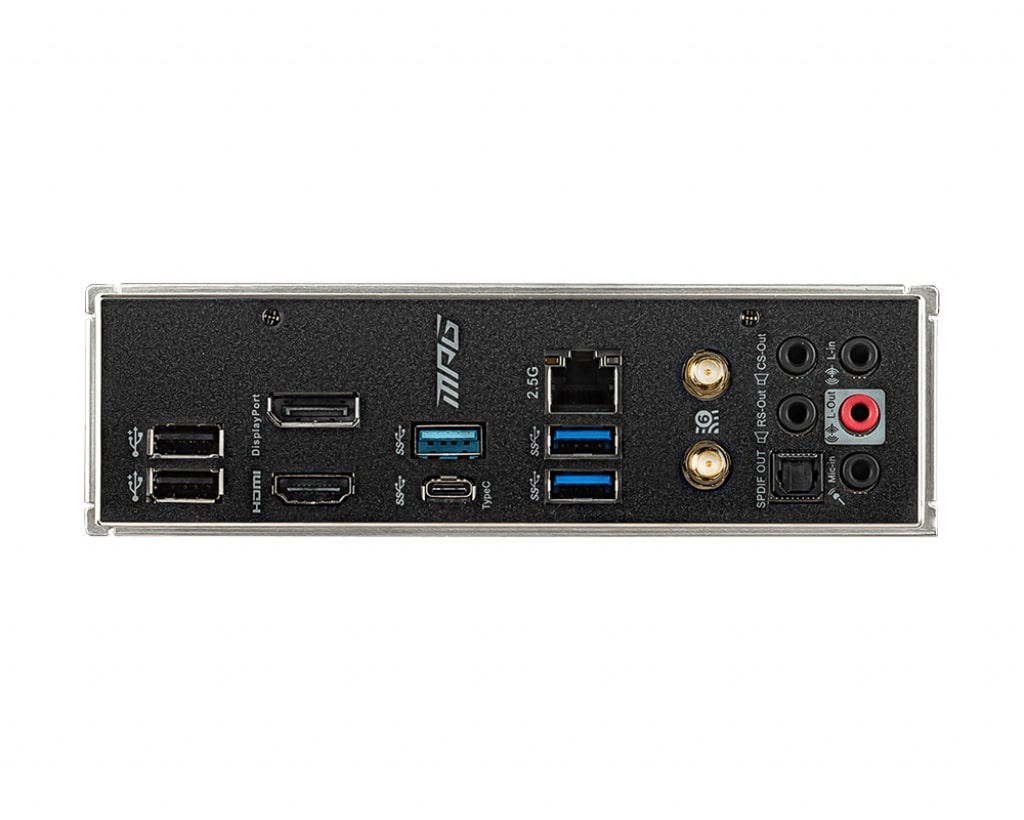

Externí porty:
*DisplayPort
*3x USB 3.2 Gen 1 5Gbps (Type-A)
*1x 2.5G LAN
*Wi-Fi / Bluetooth
*HD Audio Connectors
*2x USB 2.0
*HDMI
*1x USB 3.2 Gen 1 5Gbps (Type-C)
*Optical S/PDIF OUT

Stránka výrobce: https://www.msi.com/Motherboard/MPG-B460I-GAMING-EDGE-WIFI
