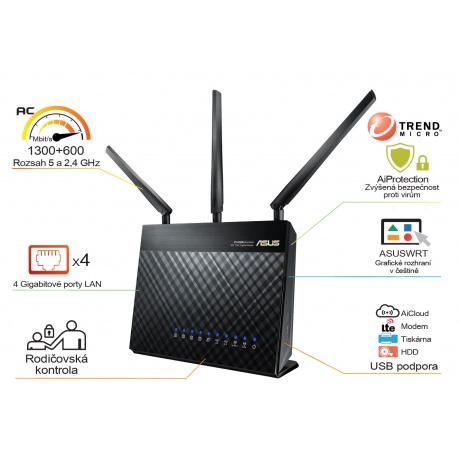

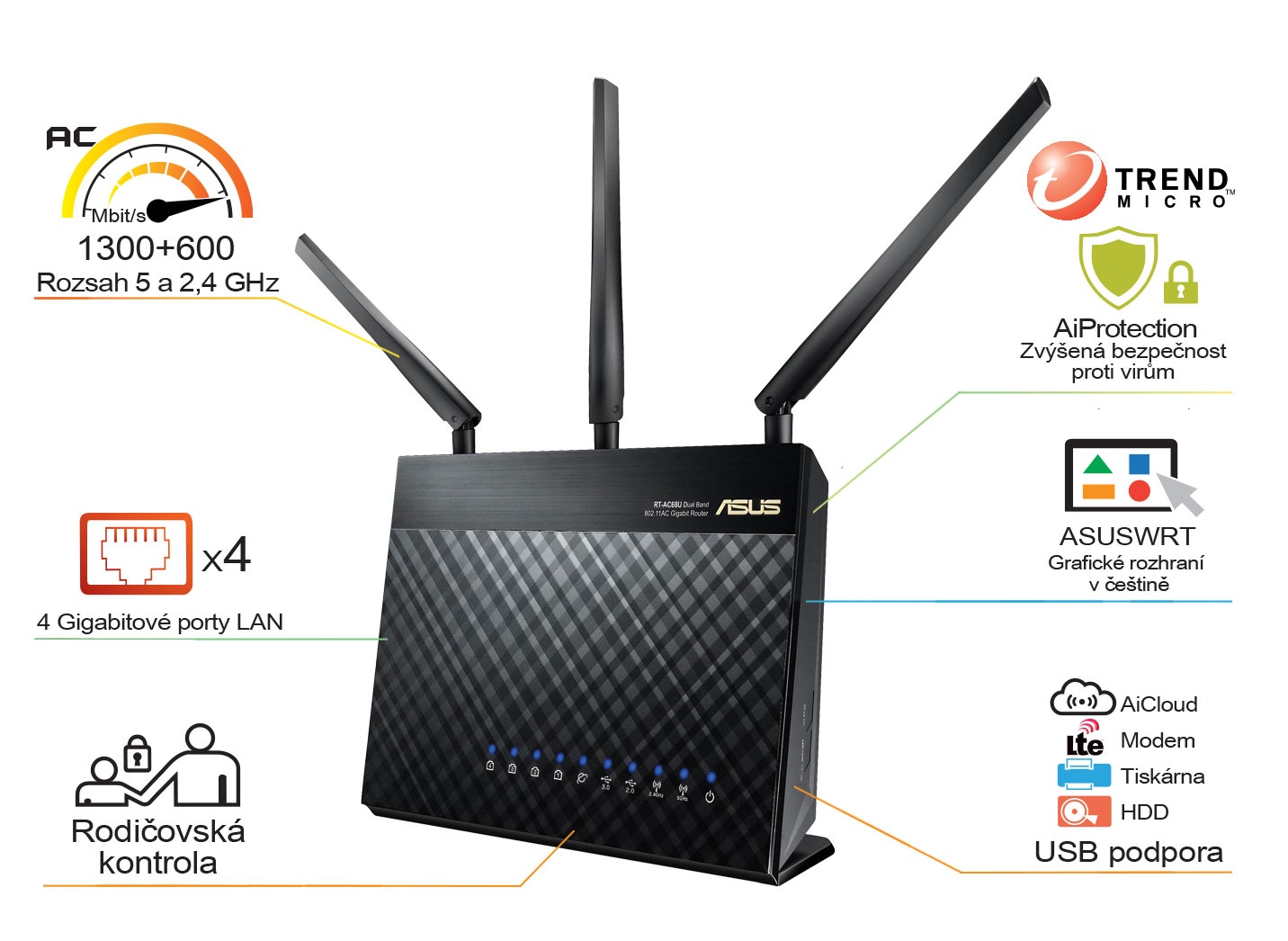

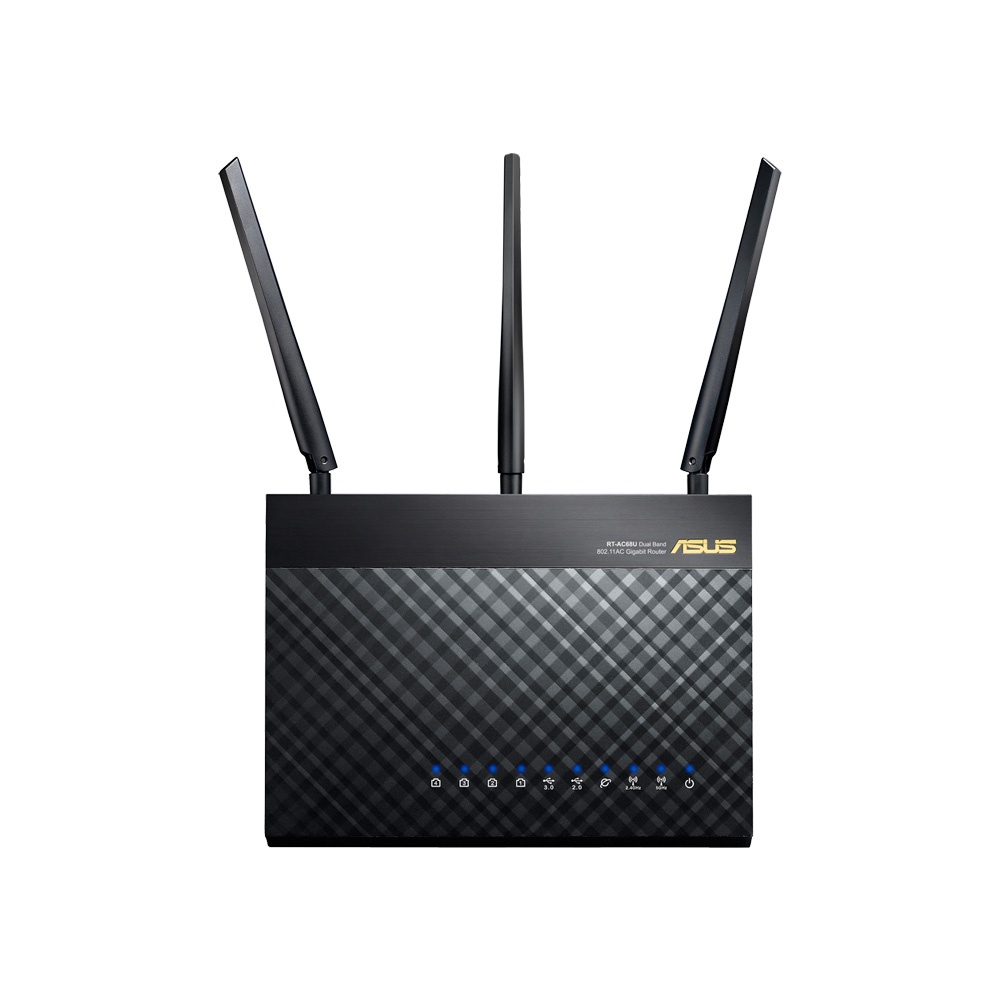

ASUS RT-AC68U
Dual-band Wireless-AC1900 Gigabit Router

OVERVIEW
The ASUS RT-AC68U is the world's fastest Wi-Fi router, with combined dual-band data rates of up to 1900 Mbps. 1300 Mbps 802.11ac at 5 GHz gives Gigabit wireless data rates, while Broadcom® TurboQAM™ technology super-charges 2.4 GHz 802.11n performance from 450 Mbps to 600 Mbps with compatible devices.

Powered by a dual-core processor, the RT-AC68U eliminates the performance drops that plague other routers with busy networks. So even on the busiest home networks, HD video streaming is always smooth, the latency low for online gaming and VoIP calls, and file downloads are never interrupted.

The RT-AC68U also features dual USB ports for file, printers and 3G/4G modems sharing and a USB 3.0 port for up to ten times faster data transfers than USB 2.0.

AiProtection with Trend Micro for advanced security
AiProtection, incorporating state-of-the-art, three-pronged security from Trend Micro™, makes RT-AC68U one of the most secure home routers you can buy. As well as providing some of the most advanced parental controls in any mainstream router, it blocks malicious addresses and intrusions for your PC or device, and alerts you if an infected device is connected. Potential weaknesses such as password strength and operating system vulnerabilities are also monitored at all times. Moreover, AiProtection even protects Wi-Fi devices without frequent security patches such as smart TV, game console, ip camera and smart home devices, giving you total peace of mind.


FEATURES
• The world's fastest Wi-Fi router, with combined dual-band data rates of
• 1900 Mbps for three times faster performance than 802.11n routers
• Broadcom® TurboQAM™ technology increases wireless-N data rate to
• 600 Mbps for 33% faster performance
• Five Gigabit Ethernet ports for fast, stable wired network connections
• Dual USB ports with USB 3.0 for ten times faster data transfer than USB 2.0
• Dual-core processor for fast and responsive performance with Wi-Fi, Ethernet and USB devices
• ASUS AiCloud cloud service to access, sync, share, and stream your data wherever you are, even connect to other compatible routers creating a private cloud server with family and friends

SPECIFICATIONS
Network Standard
• IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6

Product Segment
• AC1900 ultimate AC performance: 600+1300Mbps

Data Rate
• 802.11a : 6,9,12,18,24,36,48,54Mbps
• 802.11b : 1, 2, 5.5, 11Mbps
• 802.11g : 6,9,12,18,24,36,48,54Mbps
• 802.11n : up to 600Mbps
• 802.11ac: up to 1300Mbps

Antenna
• External antenna x 3

Operating Frequency
• 2.4GHz/5GHz

Encryption
• 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support

Firewall & Access Control
• Firewall: SPI intrusion detection,DoS protection
• Access control: Parental control, Network service filter, URL filter, Port filter

Management
• UPnP, DLNA, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Triger, Universal Repeater, System Event Log

VPN Support
• IPSec Pass-Throuth
• PPTP Pass-Through
• L2TP Pass-Through
• PPTP server

WAN Connection Type
• Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
• WAN Bridge support
• Multicast Proxy support
• Multicast Rate Setting support

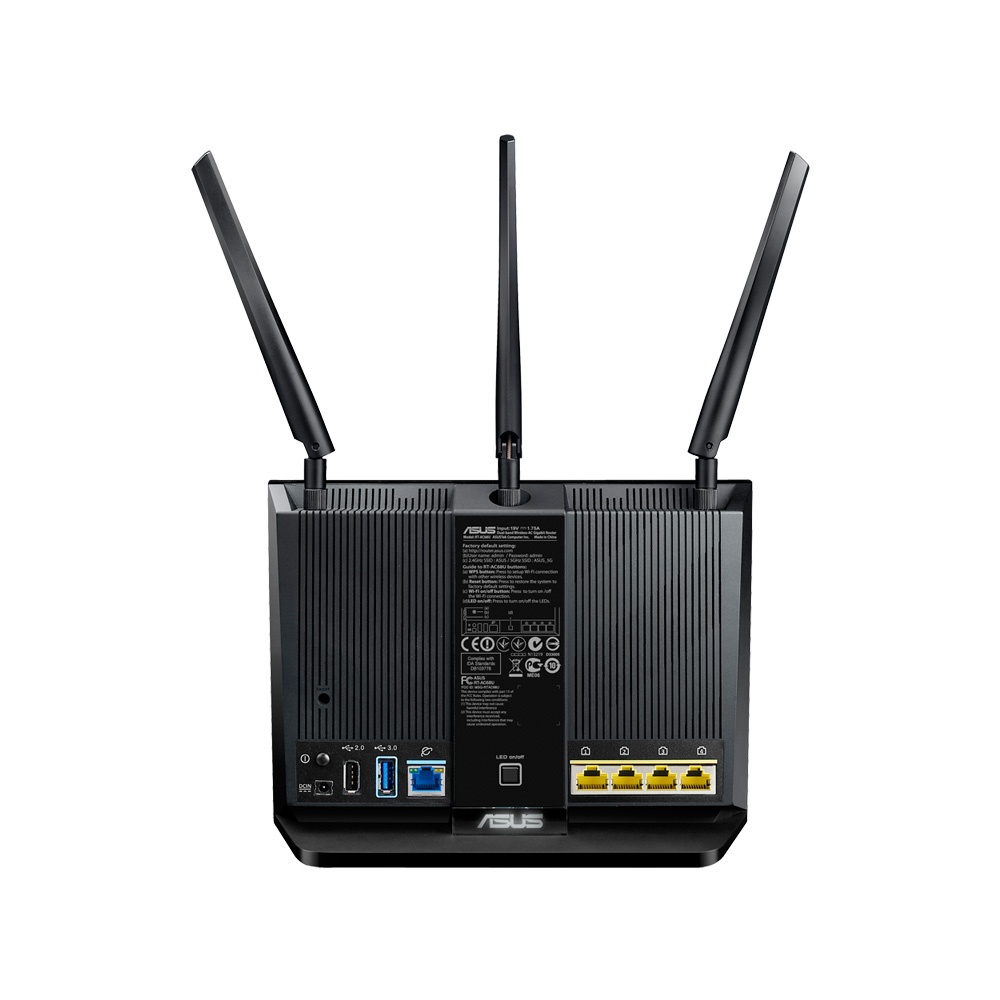

Ports
• 4 x RJ45 for 10/100/1000/Gigabits BaseT for LAN, 1 x RJ45 for 10/100/1000/Gigabits BaseT for WAN
• USB 2.0 x 1
• USB 3.0 x 1

Button
• WPS Button, Reset Button, Power Button, Wireless on/off Button

LED Indicator
• PWR x 1
• AIR x 2
• LAN x 4
• WAN x 1
• USB x 2

Power Supply
• AC Input : 110V~240V(50~60Hz)
• DC Output : 19 V with max. 1.75 A current

OS Support
• Windows® 8.1
• Windows® 8
• Windows® 7
• Windows® Vista
• Windows® 2000
• Windows® ME
• Windows® XP
• Windows® Server 2003
• Windows® Server 2008
• Mac OS X
• Mac OS X 10.1
• Mac OS X 10.4
• Mac OS X 10.5
• Mac OS X 10.6
• Mac OS X 10.7
• Mac OS X 10.8
• Linux Kernel (Support Ubuntu only)
• Linux

Dimensions
• 220 x 83.3 x 160 mm (WxDxH)

Weight
• 640 g

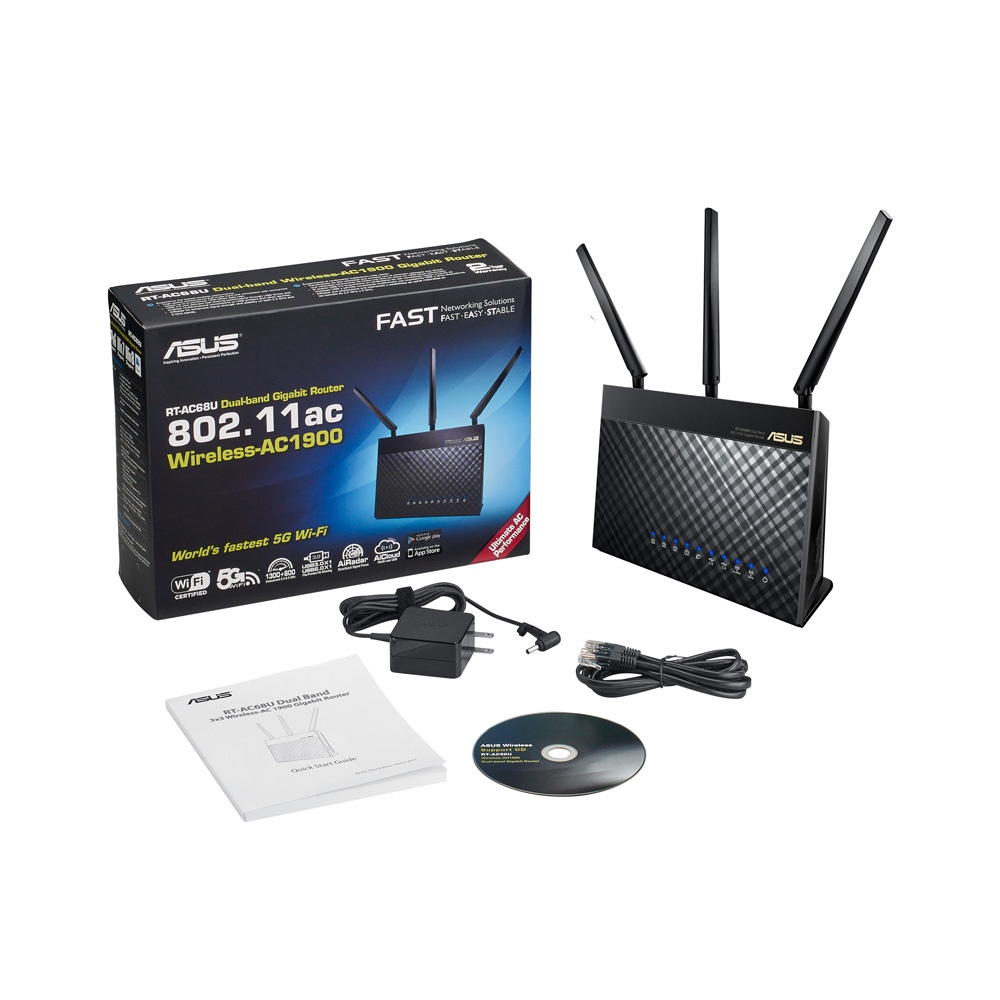

Package Content
• 1 x RT-AC68U Wireless-AC1900 Dual Band Gigabit Router
• 1 x RJ-45 cable
• 1 x Power adapter
• 1 x QSG
• 1 x Support CD (user manual and ultility)

Router Special Features
• 3G/4G data sharing, AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control
