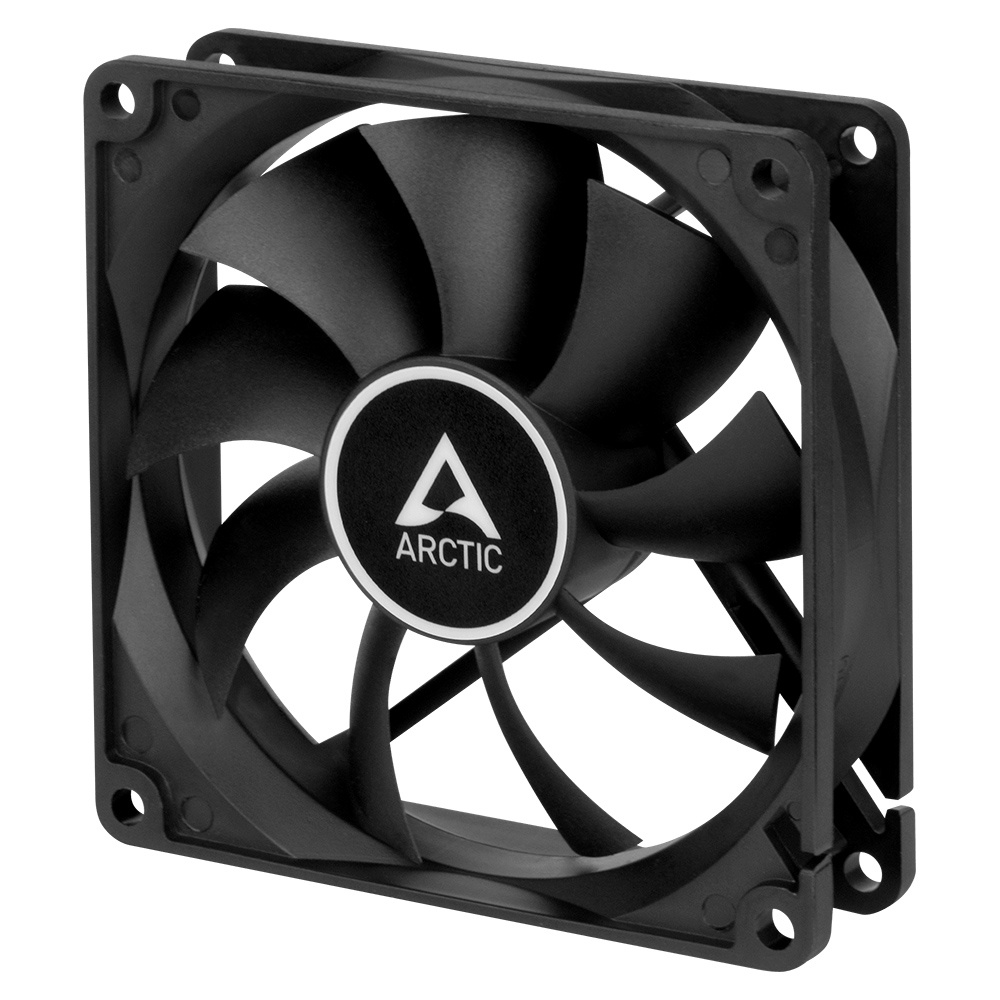

F9 Silent
Extra Quiet 92 mm Case Fan

GREATER EFFICIENCY - LESS NOISE AT HIGHER AIRFLOW
At low fan speed, the motor noise is key. A motor developed in Germany with a new alloy/lubricant combination reduced friction and noise.

Our impeller is not just quiet but moves at a given fan speed more air than any other product.

LONG SERVICE LIFE
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.

INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION
The innovative design of the fan blades improves the airflow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure

DIFFERENT INSTALLATION
- Exhaust hot air out of the case

- Intake cool air into the case

- 3-pin connector for mainboard and power supply that also works with 4-pin headers.

General data

Performance

Fan Speed: 1000 rpm
Airflow: 21.2 CFM/ 36 m3/h
Static Pressure: 0.40 mm/H2O
Noise Level: 0.08 Sone

Fan
Fan Frame: Standard
Controll Type: Fixed Speed
Connector: 3-Pin-Connector
Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 4 V
Current/ Voltage: 0.057 A / 12 V
Cable Lenght: 400 mm

Size & Weight
Lenght: 92 mm
Width: 92 mm
Height: 25 mm
Weight: 84 g

Packaging
Width: 96 mm
Height: 96 mm
Length: 27 mm
Weight: 0.1 kg.
