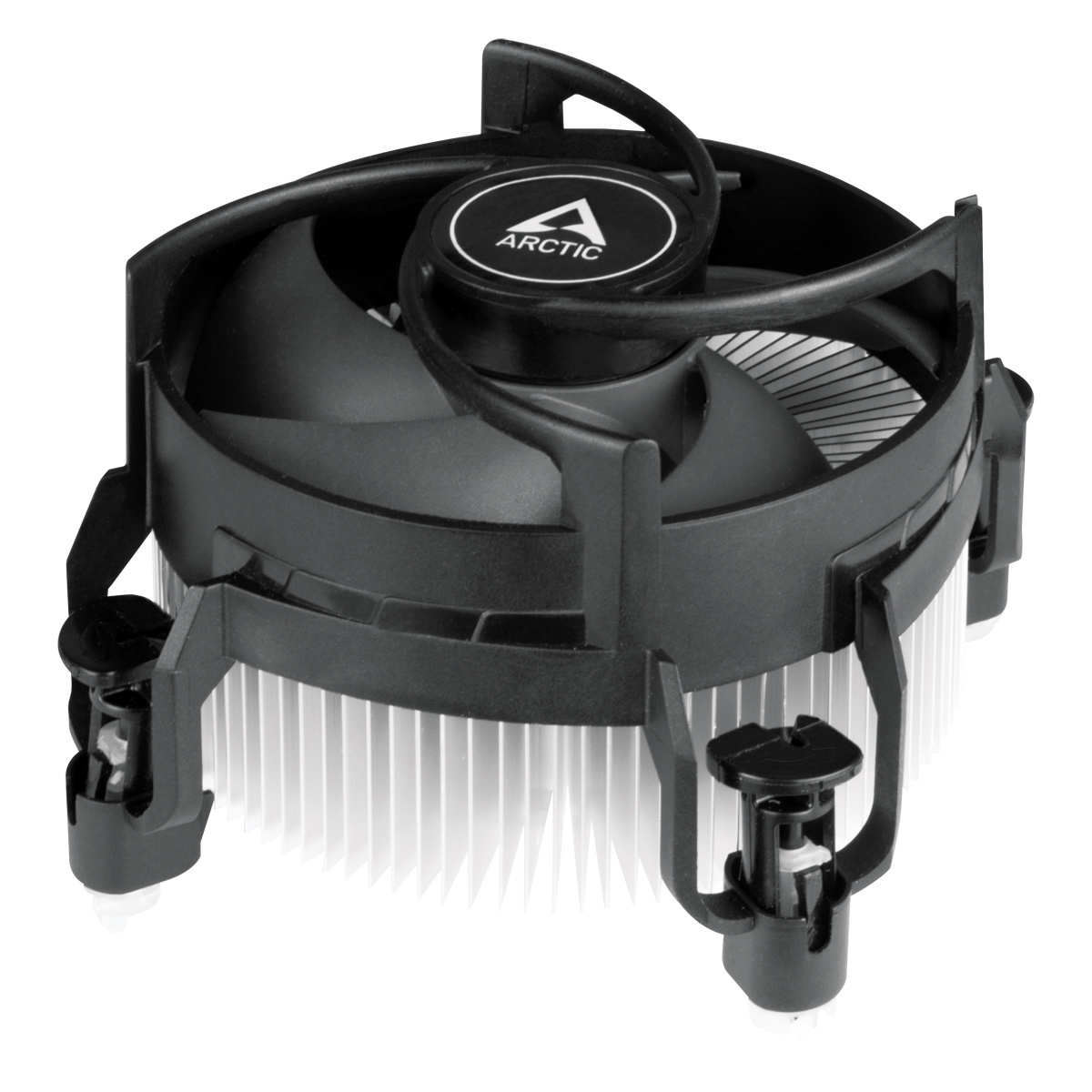

Alpine 17 CO - Compact Intel Alder Lake CPU-Cooler for Continuous Operation

DESIGNED FOR INTEL ALDER LAKE
The Alpine 17 is exclusively compatible with Socket LGA1700 and Intel's latest Alder Lake CPUs.

DESIGNED FOR CONTINUOUS OPERATION
The premium quality of the two ball bearings allows 24/7 continuous operation without compromising performance. Contamination and high temperatures affect this bearing much less than ordinary plain or magnetic bearings. Therefore, the double ball bearing is the perfect choice in working environments where you want to ensure continuous operation with a low failure rate.¨¨

EASY AND TOOL-FREE INSTALLATION
With the MX-4 already pre-applied, the Alpine 17 can be mounted directly. Thanks to the push pins, installation is a breeze. Additional tools are not needed to mount the cooler.

FULL CONTROL WITH WIDE RPM RANGE
The Alpine 17 features a very wide PWM-controlled speed range. This reduces noise to the minimum while also guaranteeing the highest cooling performance.

IMPROVED COOLING PERFORMANCE THROUGH INNOVATIVE HEAT SINK DESIGN
The extra fine cooling fins of the new Alpine are fanned out in a Y-shape. The high thermal conductivity of the aluminum is fully retained in the type of extrusion used. This novel production process makes it possible to produce a high-performance yet very compact radial heat sink. This results in an increase in the surface area of the heat sink, optimization of the airflow and thus an increase in cooling performance.

TECHNICAL SPECIFICATIONS & MANUAL

General data

Compatibility
Intel Socket: 1700
AMD Socket:
Ram Clearance: unlimited
Operating Ambient Temperature: 0 - 40 °C

Heatsink
Fin Material: Aluminum
Thermal Paste: MX-4 pre-applied

Fan
Fan Size: 92 mm
Fan Speed: 250 - 2700 rpm
Fan Bearing: Dual Ball Bearing
Noise Level: 0.5 Sone
Current: 0.09 A
Connector: 4-Pin

Size & Weight
Length: 95 mm
Width: 95 mm
Height: 77 mm
Weight: 288 g

Packaging
Width: 99 mm
Height: 82 mm
Length: 99 mm
Weight: 0.32 kg

---

---

---

---

---

---

---
